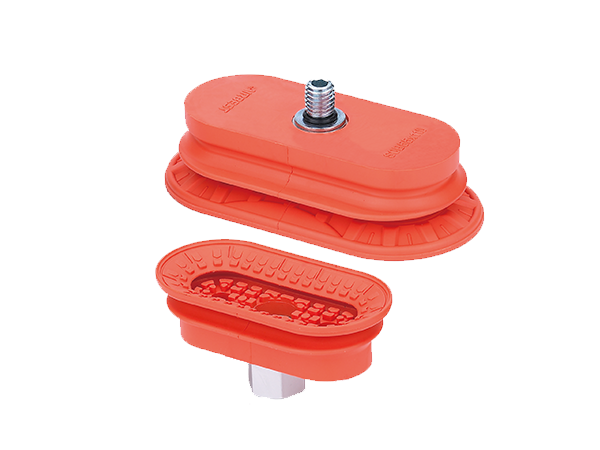

Features
◇ Large inner support structure protects the sheet metal from deformation and damage during the handling process.
◇ Slot structure efficiently improves the friction force between vacuum pad and workpiece in order to prevent the
oily sheet metal from slipping during the handling process.
◇ 1.5 bellows structure has good sealing and buffer to workpiece with uneven surface.
◇ Oval suction cup is more suitable for long and narrow workpiece with flat surface and curved surface.
Applications
◇ Car stamped steel plate, oily steel plate
◇ Long and thin workpiece with slightly curved surface
| How to order | |||||
| SOB 30×60 N -G2F ① ② ③ ④ | |||||
| ① Series | ② Dimension | ③ Material & Hardness | ④ Connection thread | ||
| SOB | 30×60 40×80 55×110 70×140 | N -NBR | G2M -Gl/4 Male thread G2F -Gl/4 Female thread G3F -G3/8 Female thread M10M -M10 Male thread M14M -M14X1.5 Male thread RA -Rectangularadapter | ||
| Selection | ||||||
| Model/ Connection thread | G2F | G2M | G3F | M10M | M14M | RA |
| SOB30×60 | ● | ○ | ● | ○ | ○ | ○ |
| SOB40×80 | ● | ○ | ● | ○ | ○ | ○ |
| SOB55×110 | ○ | ○ | ○ | ○ | ○ | ○ |
| SOB70×140 | ○ | ○ | ○ | ○ | ○ | ○ |
◇ Note: "●"- standard, in stock. "○"-selective, can be achieved in other way (e. g.adapter).
| Technical parameters | |||||||
| Model | Vertical pull-out force(N) | Lateral pull-out force(N) | Lateral pull-out force(N) (only surface) | Recommended hose dia.(mm) | Weight (g) | Inner volume (cm3) | Min. curve radius of workpiece (mm) |
| SOB30×60 | 53 | 60 | 50 | 6 | 26 | 8.7 | 25 |
| SOB40×80 | 110 | 118 | 101 | 8 | 33 | 20 | 32 |
| SOB55×110 | 197 | 200 | 183 | 8 | 75 | 50 | 50 |
| SOB70×140 | 275 | 295 | 267 | 8 | 117 | 100 | 70 |
◇Note: Vacuum level is -60kPa,workpiece surface is smooth and clean. The above pull-out force are specified without any safety factor. The value will
changes according to different surface conditions of workpiece.

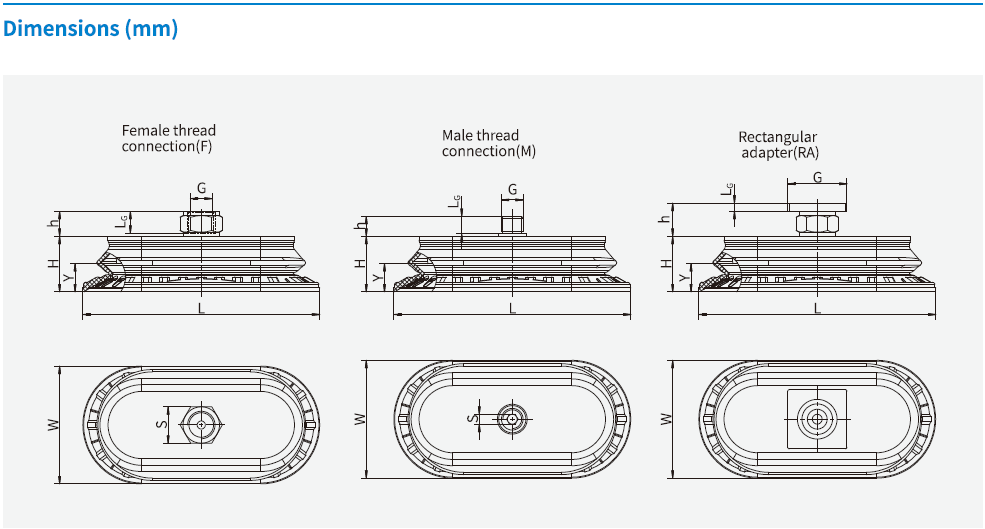

| Model/Size | L | W | H | G | LG | h | S | Y |
| SOB30x60-G2F | 62 | 32 | 20 | G1/4 | 11 | 14 | 17 | 6 |
| SOB30x60-G2M | 62 | 32 | 20 | G1/4 | 12 | 13.5 | 5 | 6 |
| SOB30x60-G3F | 62 | 32 | 20 | G3/8 | 11 | 14 | 22 | 6 |
| SOB30x60-M10M | 62 | 32 | 20 | M10 | 12 | 13.5 | 5 | 6 |
| SOB30x60-M14M | 62 | 32 | 20 | M14×1.5 | 12 | 13.5 | 5 | 6 |
| SOB30x60-RA | 62 | 32 | 20 | □32 | 4.7 | 18.7 | - | 6 |
| SOB40x80-G2F | 82 | 42 | 23 | G1/4 | 11 | 14 | 17 | 8.8 |
| SOB40x80-G2M | 82 | 42 | 23 | G1/4 | 12 | 13.5 | 5 | 8.8 |
| SOB40x80-G3F | 82 | 42 | 23 | G3/8 | 11 | 14 | 22 | 8.8 |
| SOB40x80-M10M | 82 | 42 | 23 | M10 | 12 | 13.5 | 5 | 8.8 |
| SOB40x80-M14M | 82 | 42 | 23 | M14×1.5 | 12 | 13.5 | 5 | 8.8 |
| SOB40x80-RA | 82 | 42 | 23 | □32 | 4.7 | 18.7 | - | 8.8 |
| SOB55x110-G2F | 112 | 57 | 29 | G1/4 | 11 | 14 | 17 | 12.5 |
| SOB55x80-G2M | 112 | 57 | 29 | G1/4 | 12 | 13.5 | 5 | 12.5 |
| SOB55x80-G3F | 112 | 57 | 29 | G3/8 | 11 | 14 | 22 | 12.5 |
| SOB55x80-M10M | 112 | 57 | 29 | M10 | 12 | 13.5 | 5 | 12.5 |
| SOB55x80-M14M | 112 | 57 | 29 | M14×1.5 | 12 | 13.5 | 5 | 12.5 |
| SOB55x80-RA | 112 | 57 | 29 | □32 | 4.7 | 18.7 | - | 12.5 |
| SOB70x140-G2F | 143 | 72 | 33.5 | G1/4 | 11 | 14 | 17 | 17 |
| SOB70x140-G2M | 143 | 72 | 33.5 | G1/4 | 12 | 13.5 | 5 | 17 |
| SOB70x140-G3F | 143 | 72 | 33.5 | G3/8 | 11 | 14 | 22 | 17 |
| SOB70x140-M10M | 143 | 72 | 33.5 | M10 | 12 | 13.5 | 5 | 17 |
| SOB70x140-M14M | 143 | 72 | 33.5 | M14×1.5 | 12 | 13.5 | 5 | 17 |
| SOB70x140-RA | 143 | 72 | 33.5 | □32 | 4.7 | 18.7 | - | 17 |
